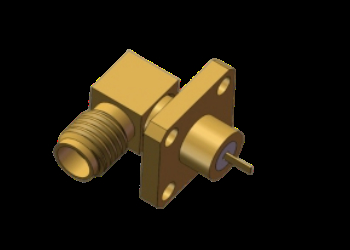

Right Angle SSMA Jack/Female RF Coaxial Connector 4 Hole Flange Mount , Microstrip Flat
|
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 제품 이름: | RA SSMA 여성 마이크로 스트립 커넥터 | 모델: | SSMA-KWFD18 |
|---|---|---|---|
| 주파수 범위: | 0.3MHz-18GHz | 임피던스: | 50Ω |
| 정격 전압: | 250V | DWV: | 750V |
| 단열성 저항: | ≥5000MΩ | 중심 지휘자: | 구리 합금, 금도금 |
| 외부 지휘자: | 구리 합금, 금도금 | 방법을 탑재하세요: | 4 홀 플랜지 마운트 |
| 마이크로 스트립: | 평평한 크기 0.2 × φ0.88 | 나사: | 10-36UNS-2 |
| 절연체: | ptfe | ||
| 강조하다: | Microstrip Flat RF Connector,SSMA Jack RF Coaxial Connector,4 Hole Flange Mount RF Connector |
||
4 Hole Flange Mount Right Angle SSMA / Mini SMA RF Coax Microstrip Flat Connector Up to 18GHz
Product Specifications
| Items | Value |
|---|---|
| Product Name | RA SSMA Female Microstrip Flat Connector |
| Model | SSMA-KWFD18 |
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 4 Hole Flange Mount |
| Insulators | PTFE |
| Samples | In Stock, Available |
Product Overview
The Right Angle SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
- Compact size with wide frequency bandwidth
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded connection (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Interface Dimensions
SSMA Right Angle 4 Hole Flange Mount Connectors with Microstrip Flat Dimensions SSMA-KWFD18 (Unit: mm).
Other Stainless Steel 4 Hole flange Mount Right Angle SSMA Microstrip Flat Connectors Models: SSMA-KWFD61G
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each 4 hole flange mount right angle SSMA connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar flange mount right angle connector models, please check our catalog. While some models are in stock, all can be produced quickly to meet customer requirements.
