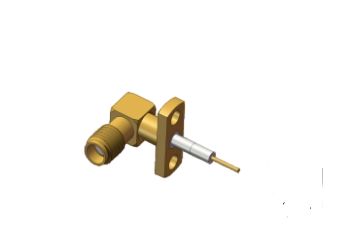

Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 제품 이름: | 직각 SSMA 여성 2 홀 플랜지 마운트 커넥터 | 모델: | SSMA-KWFD8 |
|---|---|---|---|
| 주파수 범위: | 0.3MHz-18GHz | 임피던스: | 50Ω |
| DWV: | 750V | 절연 저항: | ≥5000mΩ |
| 중심 지휘자: | 구리 합금, 금도금 | 외부 도체: | 구리 합금, 금도금 |
| 나사 소매: | 스테인레스 스틸, 패스 - 션 | 방법을 탑재하세요: | 2홀 플랜지 마운트 |
| 절연체: | ptfe | 샘플: | 재고로 |
| 강조하다: | Copper Alloy SSMA RF Connector,Right Angle SMA Female Connector,Flange Mount RF Coaxial Connector |
||
50Ω Copper Alloy 2 Hole Flange Mount Right Angle SSMA Female/Jack RF Coaxial Connector
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
2 Hole Flange Mount Right Angle SSMA Female Dimenstion:
Model No.: SSMA-KWFD8
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging and Shipping
Each 2 Hole Flange Mount Right Angle SSMA Jack RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
