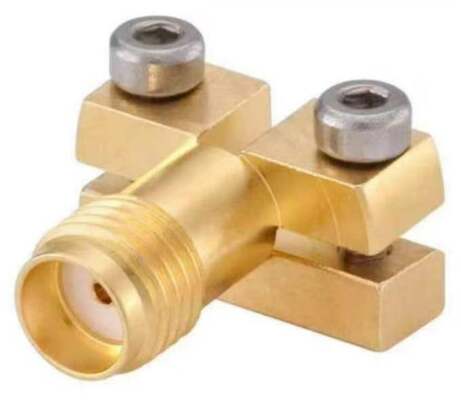

18GHz Female Jack SMA RF Connector for PCB Edge Mount
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 제품명: | SMA 알에프 커넥터 | 모델: | SMA-KFHD13G |
|---|---|---|---|
| 주파수 범위: | 0.3MHz-18GHz | 임피던스: | 50옴 |
| DWV: | 750V | 절연저항: | ≥5000MΩ |
| 센터 지휘자: | 금도금 동합금 | 외부 도체: | 스테인레스 스틸, 수동적 |
| 성별: | 잭 | 절연체: | PTFE |
| 애플리케이션: | RF 테스트 설비, 섀시, 통신, 위상 배열 레이더 시스템 | ||
| 강조하다: | 18GHz SMA RF connector PCB mount,Female SMA RF connector edge mount,SMA RF connector PCB edge mount |
||
Copper Alloy 50ohm 18GHz Jack SMA RF Connector for PCB Edge Mount
Product Description
SMA RF connectors are compact, threaded, weather-resistant 50Ω RF coaxial connectors widely used in microwave systems, communication equipment, test instruments, and aerospace applications. With an operating frequency up to 18 GHz or higher, they feature stable performance, low VSWR, high durability, and excellent electrical consistency.
We provide a full range of SMA RF connectors including male, female, through hole PCB mount, edge mount for PCB, 2 hole flange mount, 4 hole flange mount, cable connectors can mating cable EQV .086 Cable,.141 Cable, CNX3506, CXN3657, CXN3507, CXN3449, CXN3450, CXN3508, CXN3500, SFF Series Cable, Flexible Cable, Semi-flexible Cable, Semi-rigid Cable, RG178, RG316, RF405, RG402, Low-loss Temperature Stabilized Phase Cable, Armored Testing Cable, and custom configurations.
Technical Data

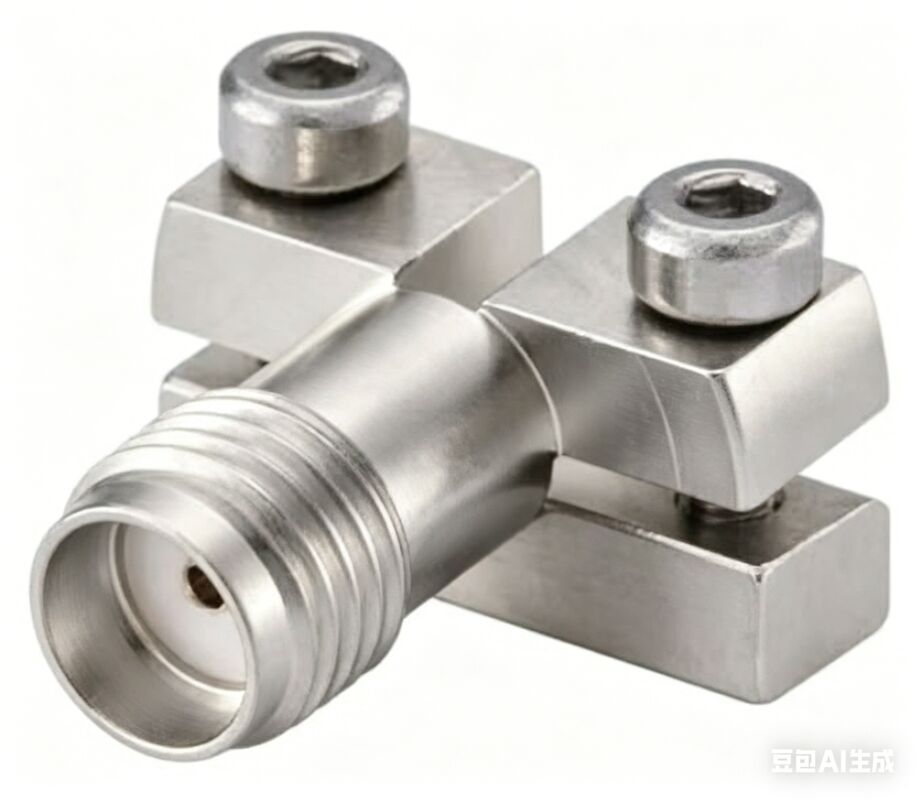

Outline Dimension: Stainless Steel Passivation Jack SMA RF Connectors
Model: SMA-KFHD13G for PCB edge mount
Applications
- Aerospace
- Aviation
- Navigation
- Radar systems
- Communications
- Test Fixture
- Electronics
Our SMA RF Connectors use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments, custom solutions available.
Packing & Shipping
Packaging: Each SMA RF Connector is securely packaged in a sturdy cardboard box with foam padding to prevent transit damage.
Other Products Catalogs
| SMA SSMA Connectors |
| SMP SMPM CSMP ASMP Connectors |
| mmW Connectors Catalog (2.92mm, 2.4mm, 1.85mm, 1.0mm, 0.8mm) |
| Between Series RF Adapter ( SMA to SSMA, SMP to SMPM, SMA to 2.92mm, SMA to N....) |
| N TNC TNCA Connectors |
| BMA SBMA Connectors |
| MCX & MMCX Connectors |
| Micro D Connectors J30J+J30J+J55A+J55AM+J56J |
| Hermetic Glass to Metal Seals |
| RF Coaxial Cable Assembly |
| Customized Product (Antennas, Filters, Power Dividers, Coupler, Waveguide Components, Test Fixtures, Package Modules) |
