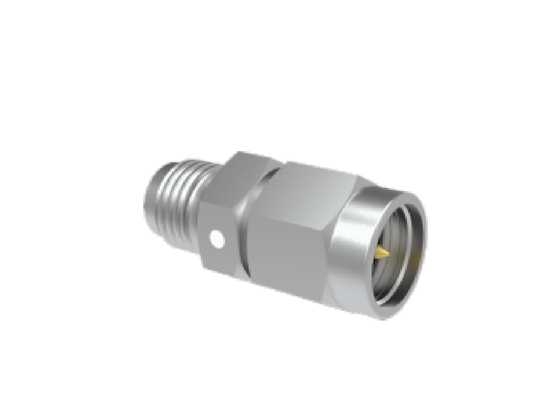

50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 제품명: | 암 부품에게 남자인 SMA | 모델: | SMA-JKG |
|---|---|---|---|
| 주파수 범위: | 0.3MHz-18GHz | 임피던스: | 50Ω |
| DWV: | 1000V | 절연저항: | ≥5000MΩ |
| 센터 지휘자: | 3mΩ 이하; 구리 합금, 금도금 | 외부 도체: | 2mΩ 이하; 스테인레스 스틸, 패시베이션 |
| 절연체: | PTFE | 샘플: | 재고 있음 |
| VSWR: | ≤1.25 | 삽입 손실: | ≤0.25dB |
| 온도: | -55℃ ~125℃ | 내구성: | 500 사이클 |
| 강조하다: | 50Ω SMA male to female adapter,Aerospace RF connectors up to 18GHz,Low insertion loss SMA adapter |
||
50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss
The SMA product series RF coaxial connector is a compact high-frequency coaxial connector with an operating frequency up to 18 GHz. It features small size, wide frequency bandwidth, excellent mechanical and electrical performance, and reliable connection. It is one of the most widely used RF coaxial connectors, and is extensively applied in aviation, aerospace, marine and other fields.
SMA Design Features
- Compact design
- Frequency band operation up to 18GHz
- Rugged construction for reliability, Screw 1/4-36UNS-2A
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMA RF Coaxial Connectors
Stainless Steel SMA Male to Female Adapter, Model No.: SMA-JKG
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMA adapter aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
