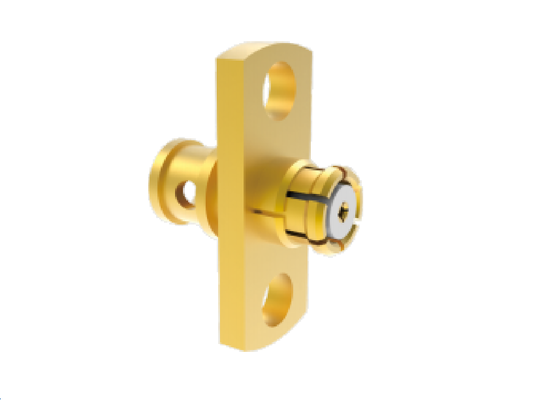

50Ω 18GHz SMP Female SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for .086 Cable
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 제품명: | SMP 케이블 커넥터 | 모델: | SMP-KFB2-87 |
|---|---|---|---|
| 주파수 범위: | 0.3MHz-18GHz | 임피던스: | 50Ω |
| DWV: | 500V | 절연저항: | ≥5000MΩ |
| 센터 지휘자: | 6mΩ 이하; 구리 합금, 금도금 | 외부 도체: | 3mΩ 이하; 구리 합금, 금도금 |
| 절연체: | 피트 | VSWR: | ≤1.3 |
| 삽입 손실: | ≤0.25dB | 온도: | -55℃ ~125℃ |
| 내구성: | 500 사이클 | ||
| 강조하다: | 50Ω 18GHz SMP female RF connector,SMP jack 2 hole flange connector,Aerospace RF connector for .086 cable |
||
50Ω 18GHz SMP Female SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for .086 Cable
The SMP series is a miniature push-on RF coaxial connector. It features compact size, light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 40 GHz. The SMP plug features three interface types: full detent, limited detent and smooth bore. It supports blind-mate interconnection and enables both axial and radial floating of the connection structure. As one of the most widely used RF coaxial connectors, it is suitable for RF and microwave signal transmission as well as modular dense installation scenarios. It is extensively applied in vehicle-borne, ship-borne and satellite-borne application.
SMP Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMP RF Coaxial Connectors
SMP Female Flange Mount Connector Mating for .086 Cable | Model No.: SMP-KFB2-87 ( Cable OD2.2 mm )
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMP .086 cable connectors aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
